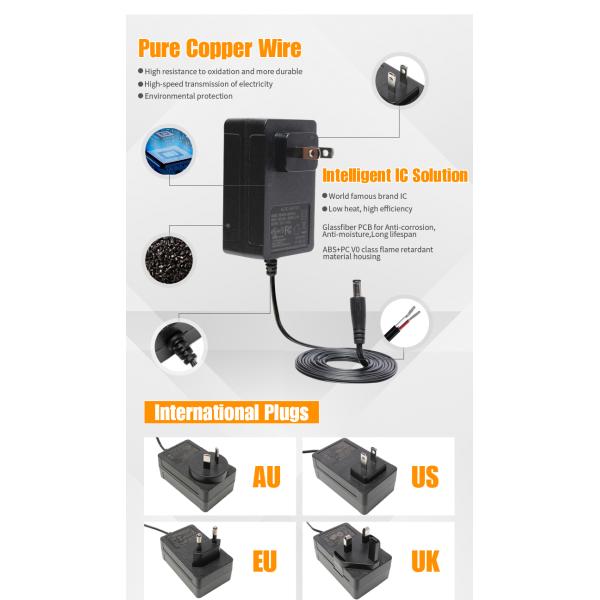

Wall Mount 16.8v 25.2v Lithium Lion Battery Charger
The Battery Charger is a highly reliable, CC + CV wall-mounted style single-output Ac Dc Power Adaptor Charger series for 4S li-ion batteries, accept output current range from 1A-3.5A option. This safety mark battery charger is equipped with an fixed AC plug EU / KR / US / AU / UK / CN type and Class II rated without earth pin, accepting the universal AC input 100-240V voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power charger is compliant with the latest VI energy regulation. The universal ac dc adapter provides safety protections for over current, over voltage and short circuit.
Features
◆ Wall mount style, charger for Li-ion batteries(lithium iron and lithium manganese)
◆ Constant voltage and constant current mode
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power units
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ 100% full load burn-in test
◆ 3 years Warranty
| Product Name: | li-ion battery charger |
| Model No: | KS39DU | Type: | Wall plug |
| AC input: | 100-240V,50/60HZ | AC input current: | 2.0A Max |
| DC output: | 16.8V 25.2V |
| Charging Mode: | Three Stage mode smart charger, CC-CV-TRICKLE |
| | 1. In process of Charging: Red |
| 2. Charged full: Green |
| 3. Red turns to Green, when Charging current less than 0.2A |
| Efficiency | higher than 89% at 100-240Vac input and output full load |
| No-Load Input Power | Input 115Vac or 230Vac,output no load, the input power loss is less than 0.5W |
| Leakage Current | ≤0.25mA/240V for class II product;≤0.75mA/240V for class I product. |
| Protections | Short circuit protection, over voltage protection, over current protection,over temperature protection, timing protection, switching off protection, recharger protection, etc. |
| Application | E bike, e balance car, e scooter, e surfboard, UAV, UPS, e four-wheeler, electric tools, intelligent household appliance charger,etc. |
