36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Model Number : KSHT-120W

Certification : UL/cUL Class2 CE FCC ROHS GS ENEC Cert.

MOQ : 5 pieces

Price : $40.40/pieces 5-499 pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 120W

Output Type : PWM

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Output Current : 2.5A-10A

Product Name : 120w 12v 24v 36v 48v triac phase cut dimming led driver

Application : LED Strip Light,Pendants, Linears,Cove Lights

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

Efficiency : ≥90%

Power : 120W

Output : 12V 24V 36V 48V

Dimming mode : Triac / Phase Dimming

Contact Now

36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Products Description
Constant Voltage AC100-277v Dimming 120w Led Power Supply waterproof ip65 12v 24v 36v 48v triac phase cut dimming led driver
The KSPOWER - HT series phase cut dimmable led driver 120 Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and PFC function.
The phase dimming led power supply use low profile metal aluminum case with or without junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 10K frequency PWM output and IP67 rated waterproof environment protection rated for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: TRIAC or MLV / ELV Phase Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSHT-120W12
KSHT-120W24
KSHT-120W36
KSHT-120W48
Output Voltage
12V
24V
36V
48V
Rated Current
10A
5A
3.33A
2.5A
Rated Power
120W
Ripple & Noise (max.)
200mVp-p
250mVp-p
250mVp-p
250mVp-p
Dimension(L*W*H)
322*58*36mm / 12.7*2.29*1.42in
Show Details
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut

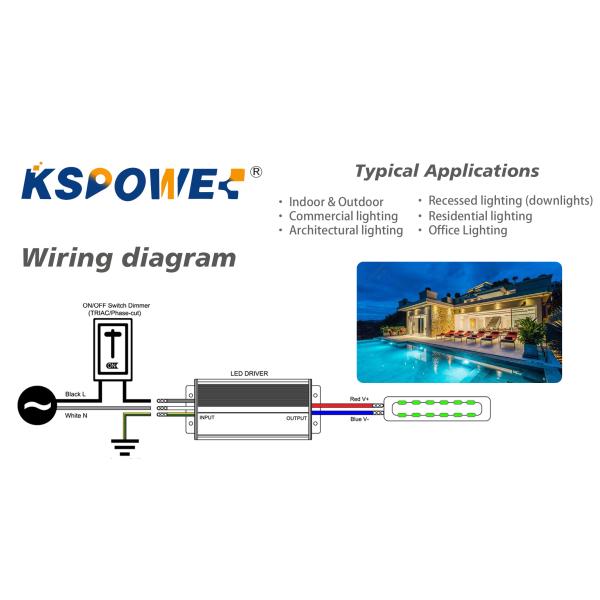

Dimming Connect Drawing
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Dimension Drawing
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Applications
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
NOW,GET MORE INFORMATIONS OF US !
Company Profile
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Working Room
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Exhibition
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Certifications
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Applications
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
36V 48V Output 120W LED Power Supply With Constant Voltage AC 100V Phase Cut
